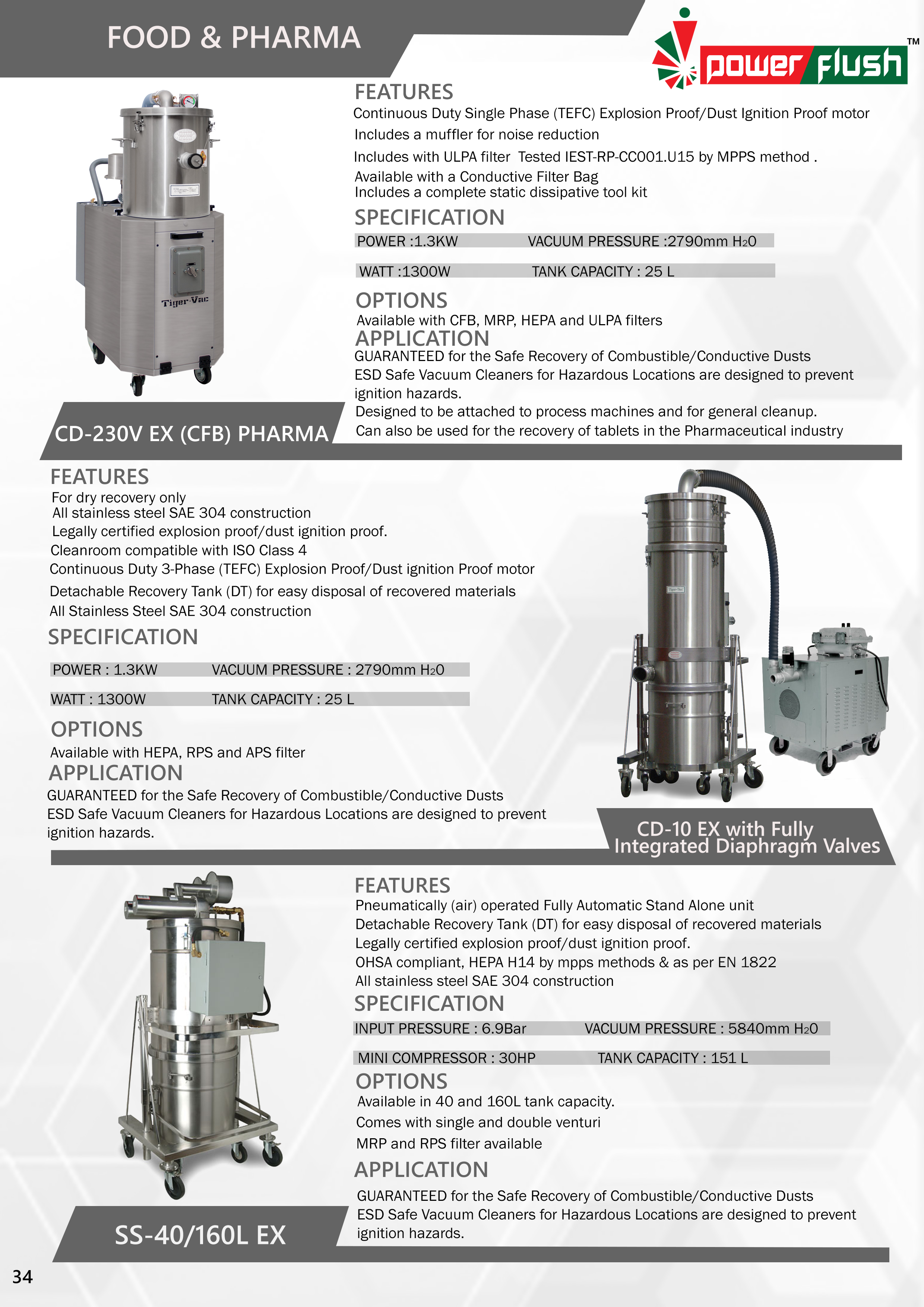

CD-10-EX-APS-with-Fully-Integrated-Diaphragm

This is a...

This is a specially designed Vacuum Cleaner with fully integrated diaphragm for Hazardous Locations to prevent ignition hazards. This Vacuum Cleaner specially designed for Explosion control environment.

CASE STUDY:

  • HEPA filter with an efficiency of 99.995% on 0.3 micron. Tested IEST-RP-CC001. H14 by MPPS method as per EN 1822 and OSHA compliant. All of our HEPA vacuum systems are aerosol leak tested before leaving our facility - optional
  • Cleanroom compatible with ISO Class 4 (former Class 10). Can be used in the Pharmaceutical industry
  • Continuous duty 3-phase (TEFC) explosion proof/dust ignition proof motor. Third Party Certified
  • Automatic Purge System (APS), with either 4 aluminized spun bond filter cartridges, or 4 socks. 4 fully integrated diaphragm valves
  • All stainless steel SAE 304 construction
  • For dry recovery only (liquids can be recovered into a separate tank)
  • Detachable recovery tank (DT) for easy disposal of recovered materials

APPLICATION:

      • For general cleanup in hazardous locations
      • Used in Chemicals, Petrochemicals; Food, beverage; Mining, Ammunition, aggregates, cement; Plastics industries
      • Division 2 and Zone 22 Dust Group IIIC: Group F Conductive Carbonaceous Dust (carbon black, coal, coke dust, etc) Group G All flour Dust ( grain, flour, starch, sugar, wood, plastic, etc)
